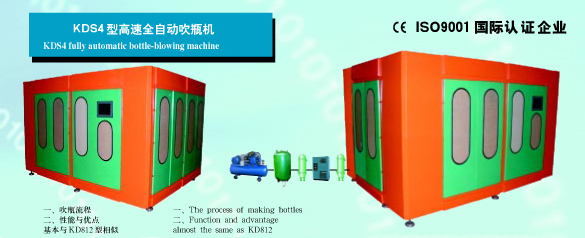

| KDS2-6型系列全自动高速PET吹瓶机技术参数 |
| 序号 |
项目名称 |
单位 |
KDS2 |
KDS4 |
KDS6 |
|
1 |
瓶模具腔数
Mould cavities |
腔
Cavity |
2 |
4 |
6 |
|
2 |
工作压力
Working pressure |
Mpa |
0.7-0.8 |
0.7-0.8 |
0.7-0.8 |
|
3 |
吹气压力 ≤
Air blowing pressure |
Mpa |
4 |
4 |
4 |
|
4 |
出瓶高度
Height of bottle |
mm |
330 |
330 |
330 |
|
5 |
开模行程
stroke of opening mould |
mm |
400 |
400 |
400 |
|
6 |
模厚
Thinkness of mould |
mm |
Φ190 |
Φ190 |
Φ190 |
|
7 |
加热单元
Heat unit group |
组
Group |
4 |
4 |
4 |
|
8 |
加温灯层数
Heated-light layer |
层
Layer |
6 |
6 |
6 |
|
9 |
加温最大功率
Max heat power |
Kw |
40 |
40 |
40 |
|
10 |
电压
Voltage |
v |
380 |
380 |
380 |
|
11 |
频率
Frenquency |
Hz |
50/60 |
50/60 |
50/60 |
|
12 |
瓶坯长度
Preform lengh |
mm |
≤160 |
≤160 |
≤160 |
|
13 |
瓶口直径
bottle neck diameter |
mm |
Φ20-Φ28 |
Φ20-Φ28 |
Φ20-Φ28 |
|
14 |
瓶直径范围
bottle diameter range |
mm |
Φ50-Φ100 |
Φ50-Φ100 |
Φ50-Φ100 |
|
15 |
瓶坯原料
Preform raw material |
kg |
PET |
PET |
PET |
|
16 |
容量范围
Volume range |
L |
0.2-1.6 |
0.2-1.6 |
0.2-1.6 |
|
17 |
矿泉水饮料瓶产量
Capacity for mineral bottle |
Pcs/h |
2400 |
4800 |
7200 |
|
18 |
热灌装瓶产量
Capacity for heat -resistant bottle |
Pcs/h |
|
|
|
|
19 |
重量
Weight |
kg |
≤4000 |
≤4800 |
≤5800 |
|
20 |
主机外形尺寸
Dimension of main machine |
mm |
|
2750x2160
x1980 |
3100x2310}
x1980 |
|
21 |
加温机外形尺寸
Dimension of heater |
mm |
|
|
|
|
22 |
理坯机外形尺寸
Preform-tidied machine size |
mm |
|
|
|
|
23 |
配电箱外形尺寸
Dimension of electrical box |
mm |
|
|
|
|
|
|
|
|
|
